10TEN JHL MK110 14/12 Pit Bike

Electric start and now available semi automatic or with manual clutch if required. With the semi automatic there is no need to stall this machine while learning.

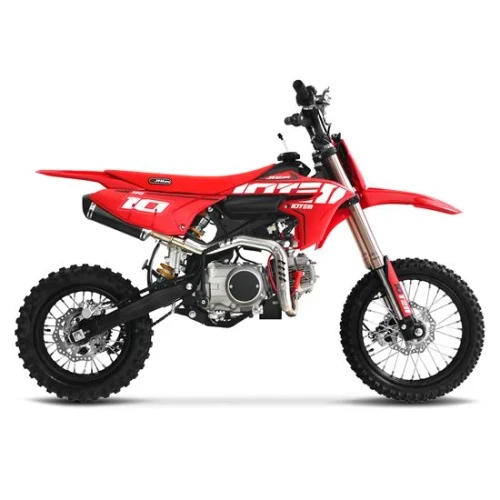

10TEN JHL MK110 14/12 Pit Bike

The 10TEN JHL MK110 14/12 takes the easy-to-use semi-automatic setup of the smaller 110 and puts it into a noticeably bigger chassis. With 14/12 wheels, a 750mm seat height, inverted front suspension and a four-speed semi-automatic gearbox, it's designed as the next step for riders who want a larger bike without moving straight to a manual clutch.

Power comes from the HS110 four-stroke engine, producing a claimed maximum of 7 hp. A four-speed semi-automatic transmission means the rider selects gears using the foot-operated gear lever but doesn't need to operate a manual clutch, making the MK110 a useful introduction to gear selection on a larger pit bike.

Both electric and kick start come as standard, while a PZ19 carburettor handles fuelling. The bike also gets a compact 3.5-litre fuel tank with CNC vent valve and a 5Ah gel battery.

Bigger 14/12 Chassis

The MK110 runs a 14-inch front and 12-inch rear wheel combination, giving it a significant increase in size over the smaller 10/10 and 12/10 machines.

A 750mm seat height and 1130mm wheelbase give the rider more room while still keeping the overall package compact and manageable. The larger wheels also help the bike deal with bumps and uneven ground more comfortably than the smaller-wheel models.

The wheels use tough black steel rims with silver aluminium hubs, fitted with Yuangxing 60/100-14 front and 80/100-12 rear tyres.

Upgraded Suspension

The MK110 also takes a step forward in suspension specification.

Up front are 43/45mm inverted forks measuring 680mm, giving the bike a more substantial front-end setup than the conventional telescopic suspension used on the smaller SK models.

At the rear, the suspension incorporates CNC components, working with a steel swingarm to complete the larger chassis setup.

Straightforward Semi-Automatic Performance

Front and rear hydraulic disc brakes provide the stopping power, while stainless steel footpegs give the rider a secure platform when riding seated or standing.

A steel engine bottom protector provides additional protection underneath the engine, while polished folding control levers add a useful touch to the cockpit.

Drive is handled by a 428H Choho chain, running a 15-tooth steel front and 41-tooth steel rear sprocket.

An hourmeter is also fitted as standard, making it easy to keep track of engine running time and routine servicing.

Finished with a black frame, black steel handlebars, stainless steel and aluminium exhaust, and 10TEN + JHLOFR graphics, the MK110 combines the simplicity of a semi-automatic 110 with the extra space, larger wheels and upgraded suspension of a bigger pit-bike chassis.

Key Features

• HS110 four-stroke engine

• 7 hp maximum power

• 4-speed semi-automatic gearbox

• No manual clutch required

• Electric and kick start

• PZ19 carburettor

• 14" front / 12" rear wheels

• 750mm seat height

• 1130mm wheelbase

• 43/45mm inverted front forks

• Rear suspension with CNC components

• Black steel rims

• Silver aluminium wheel hubs

• Yuangxing 60/100-14 front and 80/100-12 rear tyres

• Front and rear hydraulic disc brakes

• Polished folding levers

• Forged alloy steering stem

• Stainless steel footpegs

• Steel engine bottom protector

• 428H Choho chain

• 3.5-litre fuel tank with CNC vent valve

• Hourmeter

• 5Ah gel battery

• Stainless steel and aluminium exhaust

• 10TEN + JHLOFR graphics

• Battery	5Ah Gel battery
  Brakes	Disc
  Brakes	Polished foldable handle levers
  Carburettor	PZ19
  Chain	428H Choho
  Dimensions L / W / H	160 x 70 x 103 cm
  Engine Type	HS110 Semi-Auto Clutch
  Footpegs	Stainless steel
  Front Sprocket	STEEL, 15T
  FUEL TANK CAP	With CNC vent valve
  Fuel Tank Capacity	3.5 Litres
  Handlebar	Steel, Black
  Max Power	7 HP (OFF ROAD)
  Muffler	Stainless steel + Aluminum alloy
  Rear Sprocket	STEEL, 41T
  Seat Height	75 cm
  Speedometer	Hour Meter
  STEERING STEM	Forged alloy
  Suspension	Inverted type (43/45mm 680MM), Rear With CNC Parts
  Swingarm	Steel
  Tyres	Yuangxing 60/100-14 + 80/100-12
  WHEEL HUBS	Aluminium
  Wheel Type	Steel
  Wheelbase	113 cm
