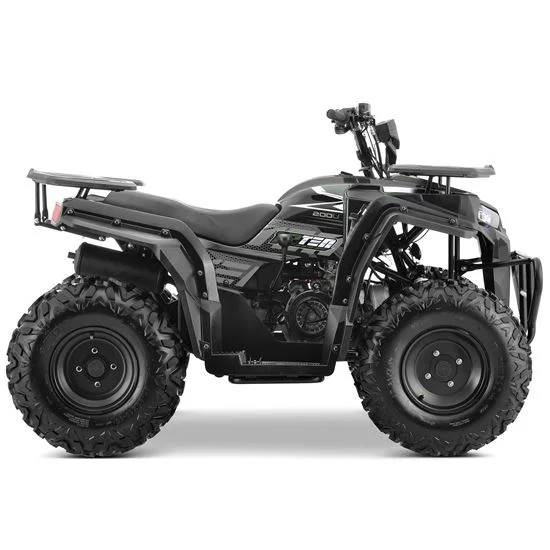

10TEN 200U

The new 10TEN 200U is a multi purpose small capacity ATV designed for a whole range of users.

Whether you need a smaller sized Utility machine to look after your small holding, or something fun for hacking around your land, then the 200U is the quad for you.  It is fitted with the world renowned GY6 engine that is one of the most widely used engines in small capacity ATVs.

The U200 comes as standard with a range of key features including tow hitch, front & rear racks, front & rear lights, pull start and oversized front bumper.

Engine - GY6 180cc

Bore & Stroke - 62.5 x 57.8mm

Compression Ratio - 10.0:1

Power - 7.35kw 7500rpm

Auto, R-N-F

Carburettor - JINGKE PD24J

Chain - 17T-37T 530

Front Suspension - 310mm

Rear Suspension - 210mm

Front Brakes - Disc Brake

Rear Brakes - Disc Brake

Front Wheel - Steel 10x5.5AT 4/110 90

Rear Wheel - Steel 10x8.0AT 4/110 90

Front Tyre - 10" AT23x7-10

Rear Tyre - 10" AT22x10-10

Fuel Tank Capacity - 5.5L

Vehicle Size - 1710 x 975 x 1030mm

Dry Weight: 155kg
